Research note: This is an independent, research-based assessment built from official specifications and product documentation. We have not claimed a hands-on laboratory test.
FiiO K7 key specifications
- Model
- FiiO K7
- DAC configuration
- Dual AKM AK4493S DAC chips
- Headphone amplifier
- Dual THX AAA 788+ modules in fully balanced architecture
- USB processor
- XMOS XUF208
- USB decode
- PCM up to 384 kHz / 32-bit and DSD256
- Coaxial decode
- PCM up to 192 kHz / 24-bit
- Optical decode
- PCM up to 96 kHz / 24-bit
- Headphone outputs
- 6.35 mm single-ended and 4.4 mm balanced
- Balanced output power
- ≥2,000 mW + 2,000 mW at 32 Ω, 1% THD
- Balanced output power
- ≥560 mW + 560 mW at 300 Ω, 1% THD
- Line outputs
- RCA and balanced XLR
- Output modes
- Headphone amp, preamp and line out
- Gain
- Two hardware gain levels
- Power supply
- Included 12 V / 24 W low-noise switching power supply
- Power design
- Multiple independent power stages regulated by low-noise LDOs
- Protection
- Overheating, overload and DC protection
- Chassis
- CNC-finished aluminium alloy
- Status lighting
- RGB indicators with light-flow effects
- Thickness
- 55 mm
DAC architecture and formats
Separate AKM DAC channels support a fully balanced signal path, with PCM and DSD compatibility sufficient for modern libraries. The implementation focuses on low noise and linearity rather than display-driven filter experimentation. Format ceilings are compatibility limits rather than automatic proof of sound quality. Implementation, output stage, clocking and noise performance matter more than playing the largest sample-rate number.
Headphone amplification and matching
Dual THX AAA 788+ modules provide substantial balanced power, with high and low gain for headphone matching. Sensitive IEM users should start on low gain and check channel balance at very low volume. Power needs depend on headphone sensitivity, impedance and listening level. Low output impedance benefits most modern headphones, while gain settings help balance sensitive IEM noise against demanding full-size models.
Digital inputs and source use
USB, optical and coaxial cover digital sources, while RCA analog input lets K7 act as a pure headphone amplifier for a phono stage or external DAC. That analog path is a major advantage over digital-only competitors. Buyers should confirm the exact connector required by a phone, computer, console or CD transport. USB class support and mobile power draw can affect convenience even when nominal formats match.
Line outputs and system integration
Front 4.4 mm and 6.35 mm sockets support balanced and conventional headphones. Rear RCA output switches between fixed line and variable preamp operation; there is no balanced XLR line output. Fixed line mode suits an integrated amplifier, while variable mode lets the unit act as a preamp for powered speakers or a power amplifier. Balanced connectors do not automatically improve every short desktop setup, but can help compatible systems.

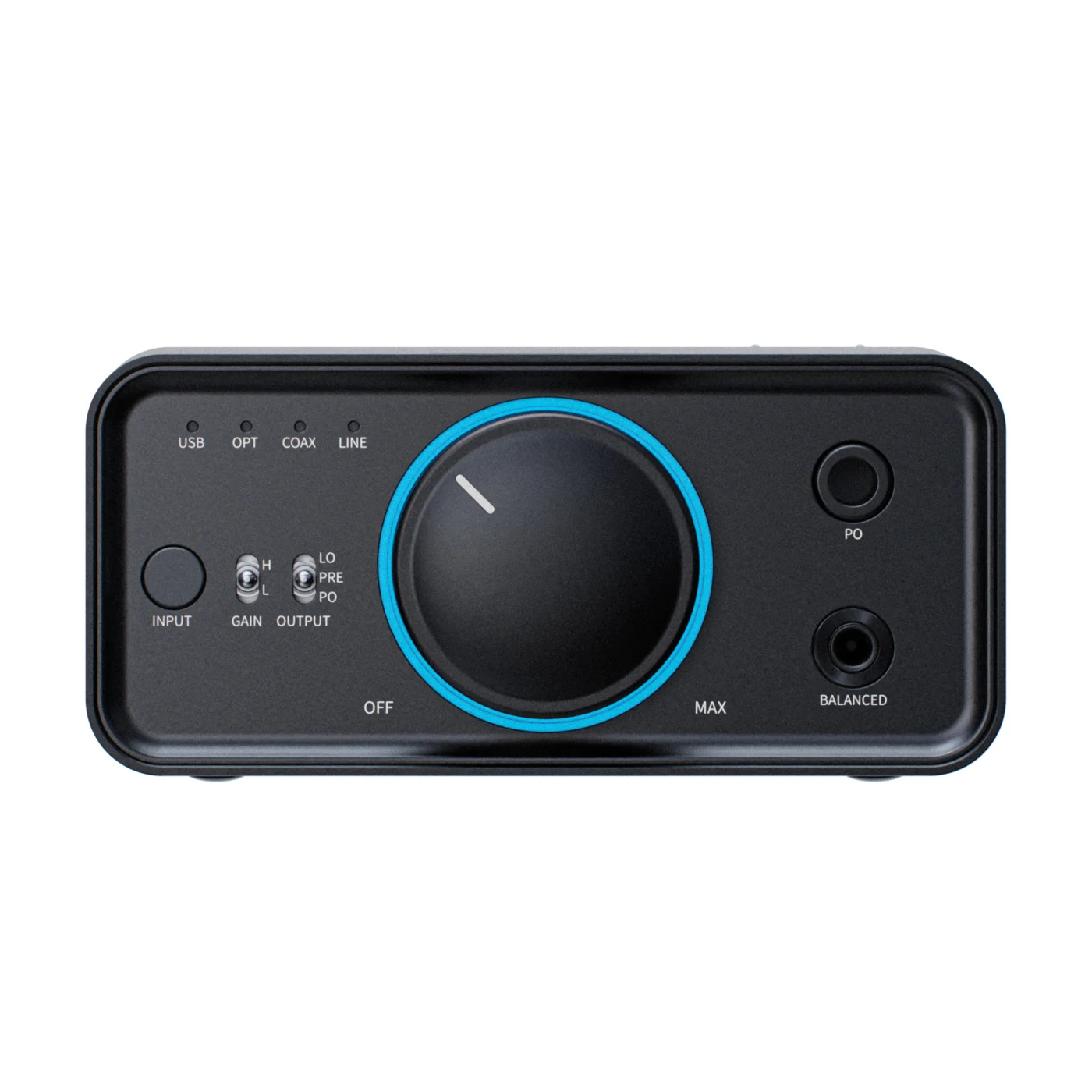

Controls, display and daily operation
A large volume ring and physical input/output switches make operation direct, but there is no screen or remote. The external power supply and desktop footprint favor a permanent listening station. Good hardware should remember gain and volume safely, make input changes obvious and avoid accidental high levels. Desktop ergonomics often matter more over years of use than small differences in published distortion.
Value and trade-offs
K7 delivers exceptional amplifier power and analog flexibility for the price. The cost is fewer convenience features: no wireless streaming, Bluetooth, remote or rich display. The correct alternative depends on whether portability, streaming, balanced power, analog inputs or a remote is the priority. A device can measure well yet be wrong for the workflow if it omits one essential connection.
Who should buy it?
Buy FiiO K7 for demanding wired headphones, balanced cables and a desk with multiple digital or analog sources. It also works as a preamp for powered speakers. Sofa control and wireless playback require another device.
Alternatives to consider
Topping DX3 Pro+ adds Bluetooth, display and remote but lacks balanced headphones. FiiO K11 R2R explores ladder conversion, while iFi ZEN DAC 3 is USB-focused and bus-powered. FiiO K9 is the more expensive feature-rich step up.
Verdict
FiiO K7 remains a power-first desktop bargain. Its dual DACs, THX amplification, balanced headphone output and analog input form a versatile core. Convenience is intentionally sparse, but buyers who value drive capability over screens and wireless features receive excellent hardware.
