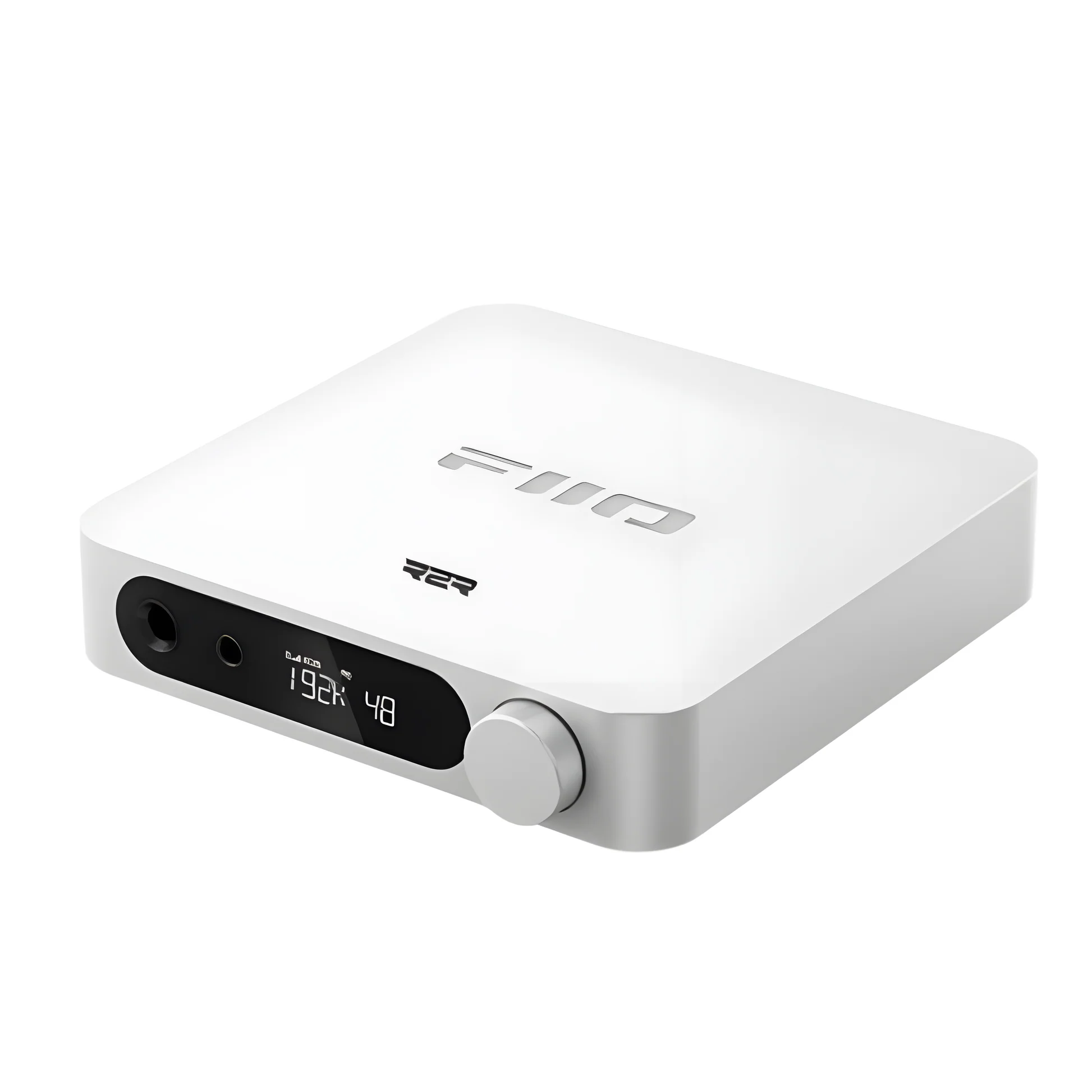

FiiO K11 R2R Review

Research note: This is an independent, research-based assessment built from official specifications and product documentation. We have not claimed a hands-on laboratory test.

DAC architecture and formats

A four-channel resistor network performs digital-to-analog conversion, with NOS bypassing oversampling and OS applying digital filtering. The modes offer different presentation choices without claiming that one is objectively superior. Format ceilings are compatibility limits rather than automatic proof of sound quality. Implementation, output stage, clocking and noise performance matter more than playing the largest sample-rate number.

Headphone amplification and matching

The balanced 4.4 mm output provides the highest power, while 6.35 mm supports conventional plugs. Three gain settings improve matching from sensitive headphones to more demanding full-size designs. Power needs depend on headphone sensitivity, impedance and listening level. Low output impedance benefits most modern headphones, while gain settings help balance sensitive IEM noise against demanding full-size models.

Digital inputs and source use

USB-C handles computer and mobile sources, with optical and coaxial for televisions or transports. The 32/384 and DSD256 ceilings are lower than some modern DACs but exceed ordinary music requirements. Buyers should confirm the exact connector required by a phone, computer, console or CD transport. USB class support and mobile power draw can affect convenience even when nominal formats match.

Line outputs and system integration

RCA can operate at fixed line level or variable preamp level for active speakers or an amplifier. There is no balanced line output, despite the balanced headphone socket. Fixed line mode suits an integrated amplifier, while variable mode lets the unit act as a preamp for powered speakers or a power amplifier. Balanced connectors do not automatically improve every short desktop setup, but can help compatible systems.

Controls, display and daily operation

A front knob, display and clear mode indicators make input, gain and volume control straightforward. The compact chassis suits a desk, while external power avoids drawing operating current from a phone. Good hardware should remember gain and volume safely, make input changes obvious and avoid accidental high levels. Desktop ergonomics often matter more over years of use than small differences in published distortion.

Value and trade-offs

K11 R2R makes a normally expensive conversion topology accessible and still includes a capable amp and preamp. Buyers prioritizing measurements, Bluetooth or maximum format numbers may prefer conventional alternatives. The correct alternative depends on whether portability, streaming, balanced power, analog inputs or a remote is the priority. A device can measure well yet be wrong for the workflow if it omits one essential connection.

Who should buy it?

Choose K11 R2R if you want to explore NOS/OS R-2R conversion in a practical desktop headphone and speaker setup. It suits balanced headphones and digital-only sources. Bluetooth users and systems needing balanced line output should look elsewhere.

Alternatives to consider

Standard FiiO K11 uses a delta-sigma DAC; FiiO K7 offers more analog inputs and amplifier power. Topping DX3 Pro+ adds Bluetooth and remote control, while Schiit Modi Multibit offers another ladder-based approach without an integrated headphone amp.

Verdict

FiiO K11 R2R is an unusually affordable entry into resistor-ladder conversion without sacrificing basic desktop ergonomics. Its format limits and RCA-only line output are sensible compromises. NOS/OS choice, balanced headphones and preamp use create real versatility.

Primary source

FiiO K11 R2R official product page
