Research note: This is an independent, research-based assessment built from official specifications and product documentation. We have not claimed a hands-on laboratory test.

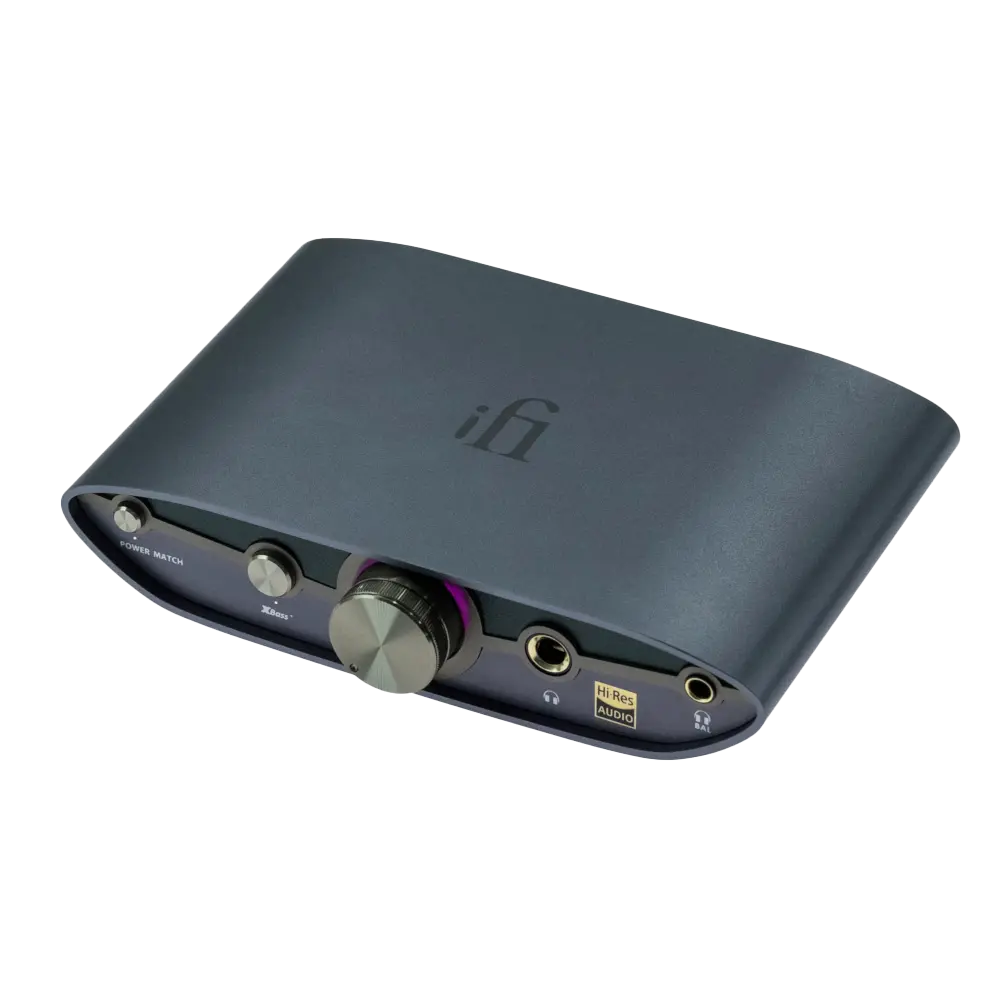

iFi ZEN DAC 3 key specifications
- Model
- iFi ZEN DAC 3
- DAC chipset
- Bit-perfect DSD and DXD DAC by Burr-Brown
- USB processor
- 16-core XMOS
- Input
- USB-C with input over-voltage protection
- Formats
- PCM up to 768 kHz, DSD512 and full MQA decoding
- Headphone outputs
- 4.4 mm balanced and 6.3 mm single-ended
- Balanced headphone power
- >390 mW at 64 Ω
- Single-ended headphone power
- >210 mW at 32 Ω
- Balanced headphone voltage
- 6.2 V
- Single-ended headphone voltage
- 3.3 V
- Headphone SNR
- >109 dBA
- Headphone THD+N
- ≤0.005% at 2 V / 600 Ω
- Line outputs
- 4.4 mm balanced and RCA single-ended
- RCA output
- 1 V / 3.3 V maximum variable; 2.1 V fixed
- Output modes
- Fixed or variable line output
- Analogue processing
- XBass+ and PowerMatch
- Clocking
- Upgraded GMT clock system
DAC architecture and formats
The Burr-Brown platform supports high-rate PCM, DSD and DXD with iFi’s bit-perfect approach. MQA decoding remains available, though current service relevance is smaller than when the format launched. Format ceilings are compatibility limits rather than automatic proof of sound quality. Implementation, output stage, clocking and noise performance matter more than playing the largest sample-rate number.
Headphone amplification and matching
Balanced 4.4 mm delivers the most power, with 6.35 mm single-ended compatibility. PowerMatch changes gain and XBass+ applies analog low-frequency lift for open headphones or bass-light recordings. Power needs depend on headphone sensitivity, impedance and listening level. Low output impedance benefits most modern headphones, while gain settings help balance sensitive IEM noise against demanding full-size models.
Digital inputs and source use
USB-C is the only digital audio input and also supplies power unless the optional 5 V input is used. PS5 and Nintendo Switch compatibility broadens use, but optical and coaxial sources cannot connect directly. Buyers should confirm the exact connector required by a phone, computer, console or CD transport. USB class support and mobile power draw can affect convenience even when nominal formats match.
Line outputs and system integration
Rear RCA and balanced 4.4 mm outputs switch between fixed and variable level, allowing connection to an integrated amplifier, power amp or active monitors. The compact balanced connector may require an adapter cable for XLR equipment. Fixed line mode suits an integrated amplifier, while variable mode lets the unit act as a preamp for powered speakers or a power amplifier. Balanced connectors do not automatically improve every short desktop setup, but can help compatible systems.
Controls, display and daily operation
A large analog volume knob and simple front switches suit desktop operation. There is no display, remote or input switching because the design is focused on one USB source. Good hardware should remember gain and volume safely, make input changes obvious and avoid accidental high levels. Desktop ergonomics often matter more over years of use than small differences in published distortion.
Value and trade-offs
ZEN DAC 3 combines balanced headphones, balanced line output and preamp control at a moderate price. Multi-source users may spend more on converters or prefer a DAC with optical and coaxial inputs. The correct alternative depends on whether portability, streaming, balanced power, analog inputs or a remote is the priority. A device can measure well yet be wrong for the workflow if it omits one essential connection.
Who should buy it?
Choose ZEN DAC 3 for a computer, PS5 or Switch desk where USB-C simplicity, balanced headphones and active-speaker control matter. It is less suitable for televisions, CD transports or sofa-based remote use.
Alternatives to consider
FiiO K7 offers more inputs and power; Topping DX3 Pro+ adds Bluetooth, optical and remote. FiiO K11 R2R provides a display and ladder DAC, while iFi ZEN CAN 3 can add far more headphone power to the stack.
Verdict
iFi ZEN DAC 3 is a focused and versatile USB desktop hub. Balanced headphone and line outputs, high format support, PowerMatch and XBass+ add genuine utility. Its one-input design is the main restriction, not its conversion or amplifier capability.
