Research note: This is an independent, research-based assessment built from official specifications and product documentation. We have not claimed a hands-on laboratory test.

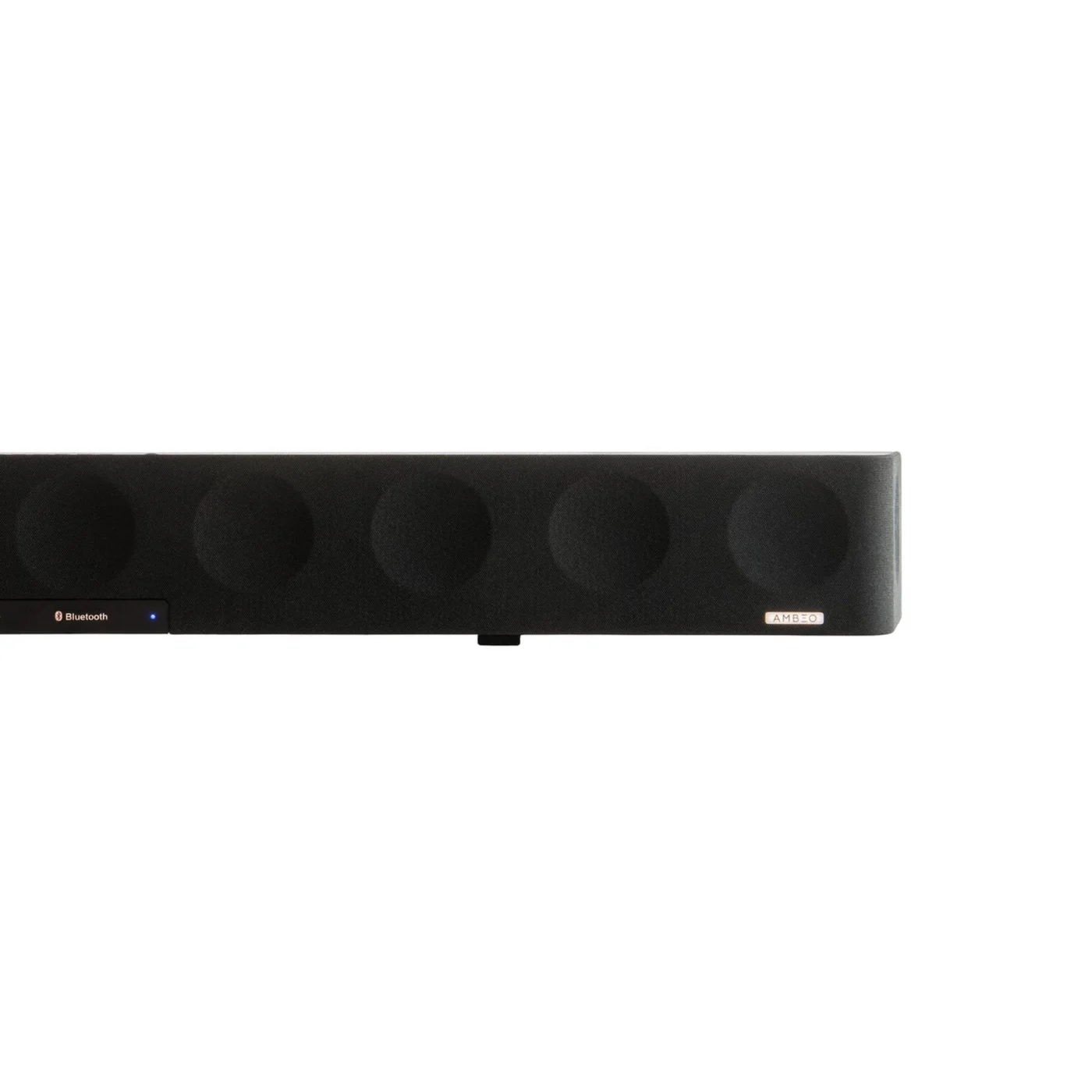

Sennheiser AMBEO Soundbar Max key specifications
- Model
- Sennheiser AMBEO Soundbar Max (SB01)
- System
- 5.1.4 channels; 13 speakers
- Total power
- 250 W RMS; 500 W peak
- Low/mid drivers
- 6 × 100 mm cellulose-sandwich cone drivers
- Tweeters
- 5 × 25 mm aluminum-cone drivers
- Top-firing drivers
- 2 × 90 mm full-range drivers
- Frequency response
- 30 Hz–20 kHz (−3 dB)
- Room calibration
- Included calibration microphone and AMBEO calibration
- Connections
- HDMI eARC output, 3 HDMI inputs, optical, analog aux, Ethernet, USB and RCA subwoofer pre-out
- Video passthrough
- Up to 4K/60 Hz
- Wireless and streaming
- WiFi, Bluetooth, AirPlay, Chromecast, Spotify Connect, TIDAL Connect and UPnP
- Dimensions
- 1265 × 135 × 171 mm including feet
- Weight
- 18.5 kg
View the official Sennheiser AMBEO Soundbar Max product page
Speaker architecture and surround approach
Six four-inch woofers, five tweeters and two upward-firing drivers create far more acoustic surface than a slim bar. AMBEO processing and calibration use wall and ceiling reflections to synthesize 5.1.4 positions. Channel labels describe processing and driver roles, not a guarantee that every room will produce discrete cinema-like positions. Ceiling height, side walls, seating distance and source mix strongly influence the result, especially for reflected height effects.
Subwoofer, rear channels and expansion
The built-in woofer array aims to remove the immediate need for a subwoofer, while an RCA sub output supports deeper extension. There are no matching battery rears; surround behind the seat remains virtual. Buyers should include the cost, power sockets and placement of every optional component when comparing systems. A complete package can deliver more convincing envelopment, while a single bar is simpler and visually cleaner.
Dialogue, calibration and everyday TV
A supplied calibration microphone measures the room, and centre processing maintains dialogue focus. The large cabinet’s headroom helps voices remain clear during loud scenes, though room geometry still affects virtualization. These features matter as much as spectacular demo scenes because most viewing contains speech. Calibration improves consistency but cannot fully overcome a highly open room or poor source mix; manual level adjustment may still be useful.
HDMI, formats and gaming
Three HDMI inputs plus eARC make source switching flexible. Dolby Atmos, DTS:X, MPEG-H and lossless formats are supported, but gamers should confirm passthrough limits because the platform predates the latest 4K/120-focused designs. eARC is the preferred connection for lossless Dolby Atmos from a compatible TV. Passthrough specifications matter only when sources connect through the bar; console owners should confirm 4K/120, VRR and HDR compatibility for their exact signal chain.
Music streaming and ecosystem
Chromecast, AirPlay 2, Spotify Connect, Tidal Connect, Wi-Fi and Bluetooth provide broad music access through the Smart Control app. The ecosystem is service-rich rather than multiroom-speaker focused. Ecosystem advantages can be substantial, but several branded features require a compatible television or additional speakers. Core HDMI behavior and format support should remain the deciding factors for mixed-brand households.
Installation and long-term value
Max remains one of the most substantial single bars ever made, but 18.5 kg, deep cabinetry and premium pricing reduce installation flexibility. Newer models offer better gaming connectivity and optional rears. Soundbars are room systems rather than isolated gadgets: width, wall mounting, ventilation, cables and wireless-speaker positions deserve planning. A premium model earns its cost when it replaces a more complex receiver system without sacrificing the features the household actually uses.
Who should buy it?
Buy AMBEO Max if you want powerful bass and cinematic scale from one front enclosure, have a sturdy wide stand or wall and do not need physical rears. It suits film-first rooms. Renters, gamers and minimalist furniture owners should be cautious.
Alternatives to consider
AMBEO Plus is smaller with newer connectivity and wireless sub support. Sony Bar 9 is slimmer with HDMI 2.1 features, while Samsung Q990F includes physical rears and a subwoofer. Devialet Dione is another premium all-in-one design.
Verdict
AMBEO Soundbar Max remains an extraordinary engineering statement: enormous, powerful and unusually convincing for one enclosure. Its virtualization cannot fully replace rear speakers, and its size and older video platform are real liabilities. For the right room, however, few single bars create comparable authority.
