Research note: This is an independent, research-based assessment built from official specifications and product documentation. We have not claimed a hands-on laboratory test.

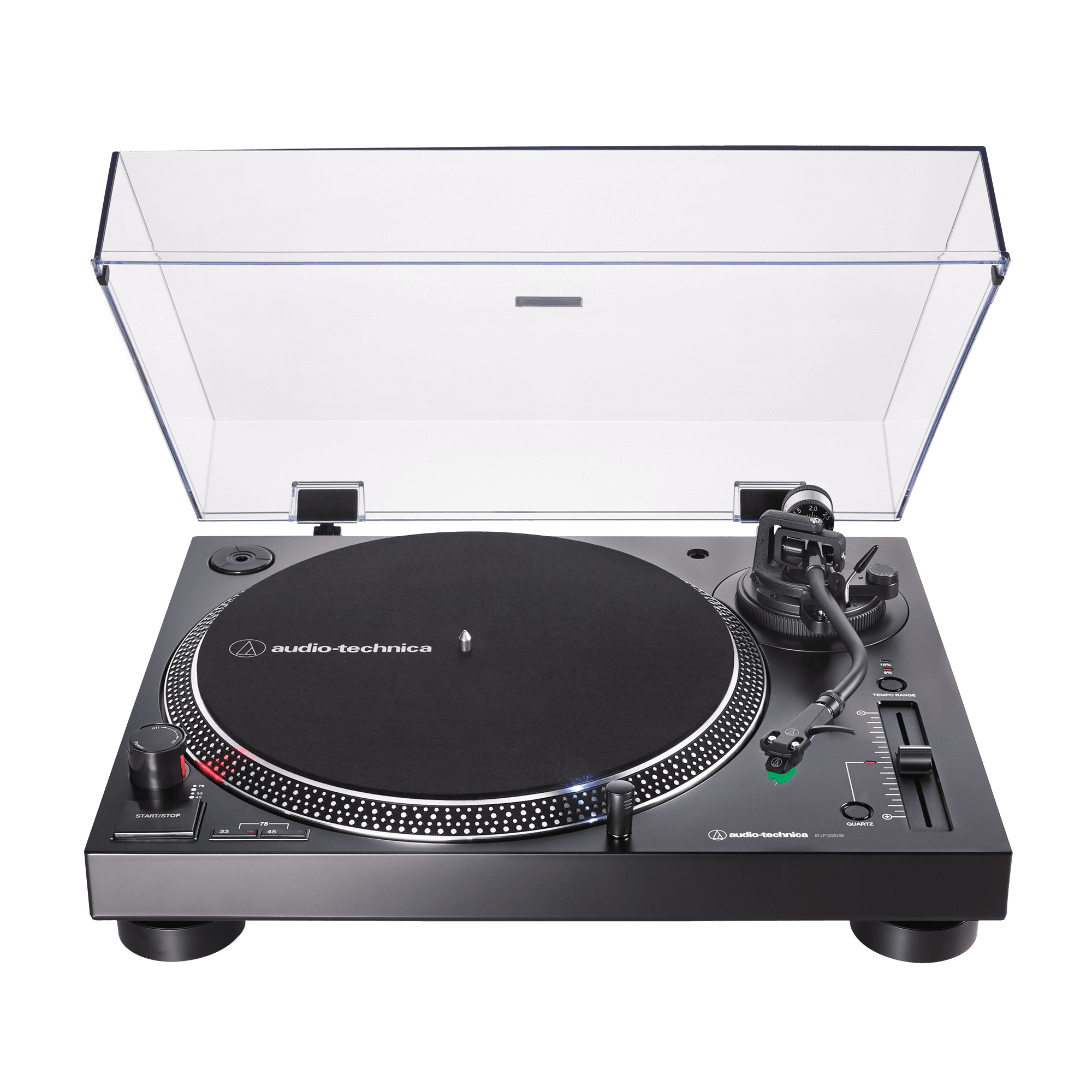

Key specifications
- Direct-drive DC servo motor with 33⅓, 45 and 78 rpm
- S-shaped 230.5 mm tonearm with removable AT-HS6 headshell
- AT-VM95E elliptical moving-magnet cartridge included
- Switchable phono/line output and USB at 16-bit/44.1 or 48 kHz
- Quartz speed lock, pitch control, electronic brake and 8 kg chassis
Drive system and speed control
A direct-drive motor starts quickly, supports three speeds and provides quartz lock plus variable pitch. The controls suit manual cueing and basic DJ-style speed adjustment, although the LP120X is a home listening deck rather than a professional club turntable. Drive topology alone does not guarantee quality: motor isolation, bearing precision, platter behavior and setup determine audible speed stability and noise. Manual models also require more user involvement than automatic turntables.
Tonearm and cartridge platform
The static-balanced S-shaped arm uses a removable SME-style headshell and includes the AT-VM95E cartridge. The VM95 family offers multiple replacement styli, making stylus upgrades simpler than replacing the whole cartridge. Cartridge alignment, tracking force and anti-skate must be set correctly before judging performance. Replaceable styli and standard mounts make future upgrades easier, while factory packages reduce first-time setup.
Phono stage, USB and system connection
A switchable 36 dB RIAA phono preamp allows direct connection to line inputs, while phono mode supports external stages. USB records at 16-bit/44.1 or 48 kHz, adequate for archiving but below modern high-resolution interfaces. A turntable without a built-in phono stage must feed a phono input or external preamp. USB is useful for archiving, but its converter resolution and recording workflow should be evaluated separately from analog playback.
Construction, isolation and placement
The die-cast aluminium platter, adjustable feet and 8 kg mass provide a stable base. The supplied dust cover and target light improve everyday usability, while feedback control still benefits from solid furniture. A level, stable surface away from loudspeakers reduces acoustic feedback. Dust covers are practical, but some listeners remove or raise them during playback if resonance becomes audible.
Setup and daily ownership
Operation is entirely manual: the listener cues the arm and returns it at the end. 78 rpm playback requires a suitable stylus for shellac records rather than using the included microgroove elliptical tip. Records and stylus need cleaning, and the cueing process rewards care. Manual operation is part of the appeal for some buyers and needless friction for others, so convenience should be treated as a real feature rather than an afterthought.
Value and upgrade path
Few turntables combine direct drive, 78 rpm, pitch control, removable headshell, phono stage and USB at this price. Simpler belt-drive models may prioritize minimalist playback, while automatic decks offer more convenience. Budget should include a phono stage, cartridge, mat, isolation and record care when they are not included. The most sensible upgrade is usually careful setup and a fresh stylus before expensive accessories.
Who should buy it?
Buy AT-LP120XUSB if you want one flexible manual turntable for records, cartridge experimentation and computer archiving without immediately buying a phono stage. It also suits 78 rpm collectors with the correct stylus. Automatic-stop seekers should choose another deck.
Alternatives to consider
Audio-Technica AT-LP5X offers a more hi-fi-focused direct-drive approach; Pro-Ject Debut EVO 2 emphasizes minimalist belt-drive playback. Fluance RT85 includes an acrylic platter and cartridge package, while Technics SL-100C is the premium direct-drive step up.
Verdict
AT-LP120XUSB is a practical Swiss Army knife for vinyl. Its direct drive, three speeds, VM95 upgrade path, phono stage and USB make system matching easy. Manual operation and 16-bit USB are clear limits, but the core turntable remains unusually adaptable.
